Description

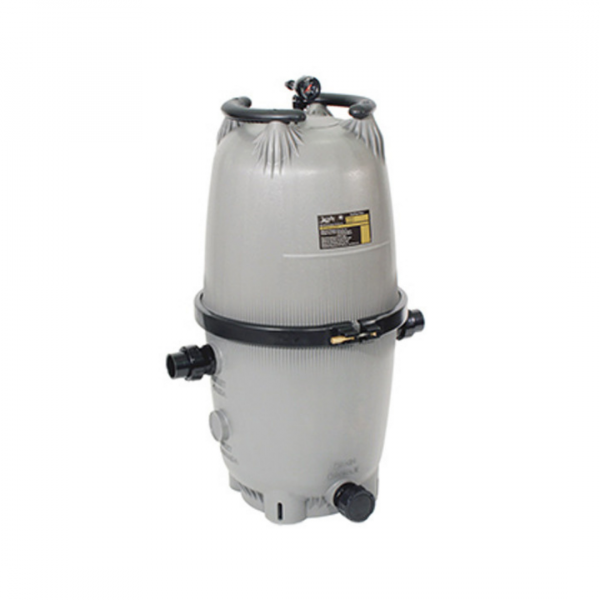

The Zodiac CV Cartridge Filter is perfect for standard-sized swimming pools of up to 100k litres. Designed with convenience, they are easy to install and run efficiently. Designed from a high quality, impact resistant, anti-corrosive, UV resistant body the CV Series are built to be long lasting and utilise a high flow rate for optimum hydraulic performance. The CV Cartridge Filter elements are designed to capture even the finest debris and the filter requires no backwashing to reduce water usage.
They feature ergonomically designed handles for easy portability, while the filter elements are easily removed for cleaning and their compact size ensures they can be installed in confined spaces. They are optimal to use with a variety of Zodiac pumps: Titan Series, FloPro Series, FloPro eSeries.
Features
- High flow rates for optimum hydraulic performance
- Ergonomic handles for portability and maintenance
- Extra-large (50mm) drain port for easy cleaning of debris
- No back washing required
- Easy-to-read pressure gauge
CV Cartridge Filter Model Specifications
| Model No. | CV340 | CV460 | CV580 |
| Filter Area | 26.5 m² | 42.7 m² | 53.88 m² |
| Maximum Flow | 483 LPM | 568 LPM | 568 LPM |
| Overall Footprint Diameter | 635 mm | 635 mm | 635 mm |
